solana - Products [ FD20L ]

World’s lightest. Consumes 20-40% less power.
Offers a more natural, wider distribution of light
than LEDs. Next generation, energy-efficient
lighting developed and designed in Japan.

40,000-hour lifespan means no replacement costs for 10 years.
Power consumption of 14W. Up to 40% more energy efficient.
Light distribution angle of 220° makes it perfect for indoor lighting.
Illuminance nearly identical to a 20W fluorescent tube.
Built-in UV-cut function to reduce the attraction of insects.
Uses high quality CCFL used in LCD products to provide a gentle, natural light with no glare.
Uses three-band RGB CCFL. Ra of 86 for a clear, natural light.
Uses improved polycarbonate “crystal tubes”.
Ultra-lightweight, only 185g including the internal power supply unit and inverter.

Model number	SOLANA-FD20L
Base	G13
Shape	φ29 straight tube
Outer material	Improved polycarbonate

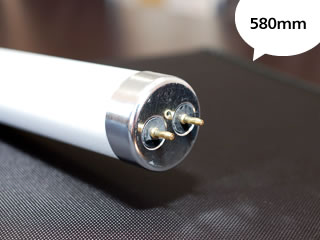

External dimensions	φ=29mm L=580mm （not including protuberant portion）
Weight	185g
Light source	φ4 CCFL
Designed lifespan	40,000 Hours
Total luminous flux	1000lm
Illuminance (1 m under fixture)*1	Warm white：190lx / Natural white：200lx / Cool white：200lx
Light distribution angle	220°
Power consumption	14W
Dielectric withstanding voltage	AC100V-220V（50/60Hz）
Operating temperature range	-20～40℃ *2

SOLANA-FD20L and SOLANA-FD40L do not require a ballast and must be directly connected.

*1 The illuminance of translucent type tubes are 5-10% lower.
*2 Can be used within a temperature range of -20 to 60?C; however, temperatures above 40?C may adversely affect its lifespan.
Important: If placing a waterproof end cap on a straight tube type light fixture, the cap must be at least 32mm in diameter.

World’s lightest. Consumes 20-40% less power. Offers a more natural, wider distribution of light than LEDs. Next generation, energy-efficient lighting developed and designed in Japan.
